Last month, a contractor lost $8,200 because nobody checked his steering axle weight before leaving the yard. The tie-downs were perfect. The chains were grade 100. Everything looked right until the CHP scale caught what his crew missed.

That’s the thing about California’s load securement laws—they’re not just about strapping things down tight. You can have the best chains money can buy and still get hit with violations that shut down your entire operation for the day.

We’ve been moving heavy equipment across California since 2008, and we’ve learned something critical: most violations happen because people focus on the wrong things. They obsess over chain grades but forget about weight distribution. They count tie-downs but ignore aggregate working load limits.

Here’s what actually keeps you compliant and safe on California roads.

Why California Treats Load Securement Differently

Federal DOT regulations set the floor. California builds three stories on top of it.

The California Highway Patrol doesn’t mess around. Their weigh stations on I-5 and I-15 use laser measurement systems that catch overhangs from 50 feet away. CHP officers cite more cargo violations than any other state patrol—over 25,000 annually according to their 2024 enforcement data.

The FMCSA handles interstate transport rules, but once you’re on state highways, CHP takes over. And they know every trick drivers try.

Bay Area haulers face extra scrutiny because of bridge weight limits. That 48,000-lb GCWR calculation isn’t a suggestion—it’s the difference between crossing the San Mateo Bridge or taking a 40-mile detour through San Jose.

Here’s the critical part most people miss: GVWR (Gross Vehicle Weight Rating) is what the manufacturer says your truck can handle. Scaled weight is what you actually loaded. CHP only cares about scaled weight. Your paperwork might say 80,000 lbs is fine, but if that scale reads 82,000 lbs, you’re getting cited.

An understanding load ratings prevents violations like the $8,200 CHP case. There, an overloaded steering axle failed inspection despite proper tie-downs.

The Equipment That Actually Matters

Walk into any truck stop and you’ll find 47 different types of tie-down equipment. Most of it is overkill for what you need, or worse—not rated for what you’re hauling.

Chains vs. Straps: The Real Difference

Grade 70 chains handle most construction equipment. Grade 100 exists for specialized applications, but here’s what nobody tells you: Grade 100 chains are less forgiving. They don’t flex under load, which sounds great until you’re securing something with uneven contact points.

Straps work fine for lighter loads under 15,000 lbs. The problem? California’s temperature swings destroy nylon faster than anywhere else in the country. A strap that’s rated for 10,000 lbs in January might only handle 6,000 lbs by July if you’ve left it in direct sunlight.

Check the D-rings, not just the webbing. Rust at connection points reduces working load capacity by 40%, but the strap itself looks fine. We’ve seen brand-new straps fail inspection because someone stored them in a damp truck bed for three months.

Chain Type	Working Load Limit	Best Use Case	Failure Point
Grade 70 Transport	4,700 lbs (3/8″)	Standard excavators, skid steers	Binding point wear after 200+ uses
Grade 100 Alloy	12,000 lbs (1/2″)	Large dozers, crushers over 30K lbs	Sudden fracture under shock loads
Ratchet Straps (4″)	5,400 lbs WLL	Compact equipment, attachments	UV degradation, webbing cuts

Binders Get Overlooked Until They Fail

Lever binders are faster. Ratchet binders are more precise. Neither matters if the pivot point is worn.

Inspect where the lever connects to the body. If there’s visible play—even a quarter inch—that binder is compromised. CHP inspectors check this first because it’s the most common failure point that drivers ignore.

Calculating Tie-Downs Without Overthinking It

The formula sounds simple: cargo length divided by 10 feet, plus one additional tie-down. A 28-foot beam needs three restraints minimum.

But that formula assumes even weight distribution and stable cargo. Real equipment doesn’t work that way.

For Equipment Over 10,000 lbs, Different Rules Apply

A John Deere 410L backhoe weighs 14,500 lbs. The standard formula says you need two tie-downs. Try securing that machine with two chains and see how far you get before it shifts.

Heavy equipment needs six-point minimum securement:

• Two chains on the front tracks or wheels
• Two on the rear
• One restraining the boom
• One securing any attachments

The FMCSA’s 393.110 regulation is explicit: equipment exceeding 10,000 lbs requires additional restraints beyond the basic calculation. We use four chains minimum, plus two straps for redundancy.

The Aggregate Working Load Limit Rule Everyone Gets Wrong

Your combined tie-down strength must equal at least 50% of cargo weight. That part is straightforward.

What trips people up: you can’t just add up the WLL numbers stamped on your chains. You need to account for angle and attachment method.

A chain rated for 10,000 lbs loses capacity when used at an angle. At 45 degrees, you’re only getting about 70% of rated strength. At 30 degrees, it drops to 50%.

Do the math before you load:

• 20,000 lb excavator
• Needs 10,000 lbs aggregate WLL
• Four chains at 4,700 lbs each = 18,800 lbs total
• Multiply by 0.7 for typical angles = 13,160 lbs effective WLL

You’re good. Barely.

Use one fewer chain and you’re illegal, even though your paperwork adds up correctly.

Weight Distribution Stops More Trucks Than Bad Tie-Downs

Height matters more than most people realize. Cargo over six feet tall increases rollover risk by 300% on California’s mountain passes.

The High Center of Gravity Problem

At 42 inches above the deck, you’ve entered the danger zone. Anything taller affects your turning radius, braking distance, and stability in crosswinds.

I-5 through the Grapevine sees consistent 40+ mph wind gusts. A top-heavy load that feels stable in Bakersfield will try to flip you sideways at 4,000 feet elevation.

Position heavy items as low as possible. If you’re hauling a Komatsu excavator with a 12-foot boom, lay that boom horizontal and tie it separately. Leaving it vertical looks cleaner but creates a pendulum effect every time you brake.

Steering Axle Weight: The Thing Nobody Checks Until It’s Too Late

Your steering axle should carry 12-15% of total weight. Not more, not less.

Too little weight and you lose traction in turns. Too much and you’re overloading the front suspension, which reduces stopping power and wears tires unevenly.

The Commercial Vehicle Safety Alliance found that a 5% steering axle overload decreases tire traction by 20% in wet conditions. California gets rain. Those statistics become real consequences on CA-99 during winter storms.

Get a scale ticket before leaving the yard. The $15 charge for certified weight beats the $2,500 fine for running overweight.

How to Actually Secure Your Load (Not Just Make It Look Good)

Pre-trip inspections catch 80% of securement issues before they become roadside violations.

The 12-Point Check That Matters

Start at the rear. Those chains take the most stress during transit because cargo shifts backward under braking.

1. Check rear chain hooks for cracks or deformation
2. Verify binder tension—you should need both hands to move the lever
3. Inspect where chains contact the deck for edge protectors
4. Examine front chains for the same issues
5. Test strap tension with the “two-finger rule”—if you can lift the strap two inches, it’s too loose
6. Look for rust on D-rings and connection points
7. Verify all attachment points on the cargo itself
8. Check that boom locks are engaged on excavators
9. Confirm wheel chocks are in place
10. Inspect trailer deck for damage or weak spots
11. Verify clearance lights work on any overhang
12. Document everything with photos

California law requires re-inspection within 50 miles of departure. Set a timer. The CHP knows exactly where that 50-mile mark is on every major highway, and they position inspection stations accordingly.

Flatbed Securement: Diamond Pattern Beats Everything Else

Steel coils, concrete barriers, machinery with rounded surfaces—they all need diamond pattern chains.

Standard parallel chains let cargo rotate. Diamond patterns create opposing forces that lock everything in place. The CHP training manual specifically recommends this method because it distributes forces evenly across four contact points.

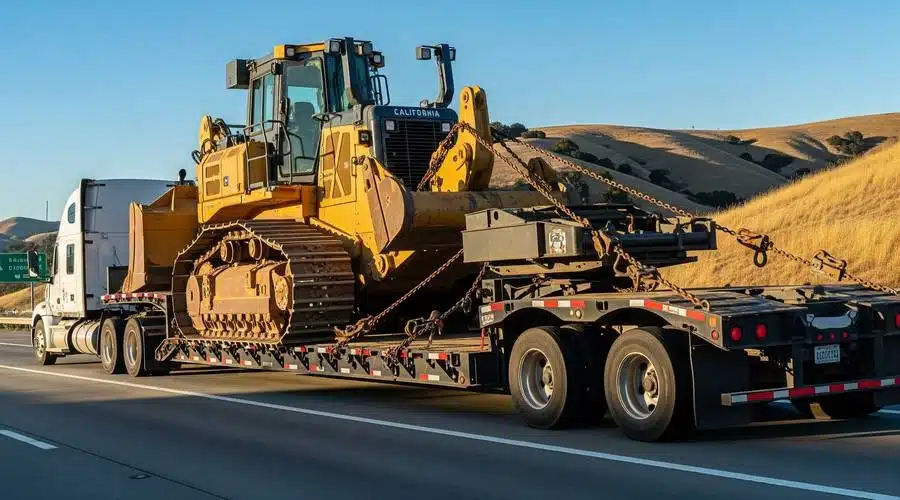

For tracked equipment like dozers or excavators, X-configuration on each track prevents lateral movement. Use two chains per track, crossing them underneath.

Special Rules for Specific Equipment Types

Construction equipment gets its own section in CFR 393.130, and for good reason. These machines have moving parts, hydraulic systems, and attachment points that don’t exist on standard cargo.

Excavators and Boom Loaders Need Extra Attention

The dipper arm exception: if your boom extends more than five feet beyond the machine body, it needs a dedicated restraint. This is separate from your main securement system.

For a CAT 336 excavator:

• Four chains minimum on tracks
• Two binders specifically for the boom
• One restraint on the bucket or attachment
• Hydraulic boom lock engaged

That boom lock is critical. Hydraulics can fail. Temperature changes affect fluid pressure. A boom that’s secure at 70 degrees might drift at 95 degrees during a Central Valley summer haul.

Specialized Cargo Gets Weird Fast

Metal coils need “eye-to-sky” positioning with edge protectors. The edge protectors aren’t optional—they’re what prevents your chains from cutting through steel during normal road vibration.

California timber regulations are oddly specific: eight straps minimum for pine loads over 24 feet. Not seven. Not six with heavier grade. Eight. The CHP cites this violation constantly because lumber companies try to argue that stronger straps should count double.

They don’t.

Cargo Type	Minimum Restraints	Special Requirements	Common Violation
Excavators (tracked)	6 points	Boom lock + separate arm tie	Forgetting attachment restraint
Metal coils	4 chains + edge protection	Eye-to-sky only	Missing edge protectors
Timber (>24 ft)	8 straps	Cannot substitute chains	Using 6 heavy-duty straps
Intermodal containers	Twist-locks + 2 chains	Corner casting inspection	Worn twist-lock pins

What Happens When CHP Pulls You Over

The I-10 weigh station uses laser systems that measure overhang, height, and weight distribution before you even stop. By the time an officer walks up to your window, they already know if something’s wrong.

What Inspectors Actually Look For

Working load limit documentation matters more than the equipment itself. Keep records for every chain, strap, and binder—including purchase dates and inspection logs.

CHP wants to see three years of history. Not because they’re bureaucrats, but because equipment degrades predictably. A chain that’s five years old without documented inspections gets automatic scrutiny.

Common violations we see:

• Missing restraints on attachments (bucket, forks, blades)
• Inadequate aggregate WLL for the actual cargo weight
• Improper angle reducing effective chain strength
• Worn binders that technically meet WLL but show visible damage

The Fine Structure Hurts

2024 penalty schedule:

• $287 for minor documentation issues
• $895 for inadequate tie-downs
• $2,876 for unsecured attachments that could fall off
• $8,200+ for weight violations causing safety risks

Out-of-service orders are worse than fines. Your truck doesn’t move until you fix the violation. If you’re 200 miles from your yard and don’t have spare equipment, you’re calling for a Heavy Haul transport service  to rescue your load while you sit on the shoulder.

For disputes, call CHP Commercial Vehicle Section at (916) 843-3400. Be polite. Have your documentation ready. We’ve successfully contested violations by showing timestamped photos of proper securement, but it requires proof—not arguments.

Practical Safety Measures That Actually Work

Monthly training sessions with CHP-certified instructors cost $400 per driver. Violations cost $2,800 average. The math is simple.

Weather protocols matter in California more than other states because of elevation changes. The Sierra Nevada creates microclimates where conditions change every 20 miles. Our rule: reduce GVW by 15% during mountain storms. Yes, that means making two trips sometimes. It also means we haven’t had a rollover incident in 16 years.

Technology Makes Compliance Easier

Real-time monitoring sensors on tie-downs alert you when tension drops. The Whip Around app tracks inspection schedules and flags equipment due for replacement.

Automatic tensioners cost about $180 per unit but they pay for themselves fast. Manual tensioning depends on driver strength and attention. Automatic systems maintain consistent pressure regardless of temperature changes or road vibration.

Recheck all restraints every 150 miles or three hours, whichever comes first. California Vehicle Code §23114 requires this for aggregate haulers, but we apply it to all loads. Chains loosen. Straps stretch. Equipment shifts.

Set phone reminders. Make it routine.

The Questions We Get Asked Most

What if federal and California rules contradict each other?

Follow the stricter standard. California requirements override federal minimums when they’re more stringent. FMCSA sets the baseline—CHP raises the bar.

Can I use damaged equipment if it still meets WLL?

No. Visible damage gets cited even if the strap or chain technically functions. Inspectors don’t test your equipment—they look at condition and make judgment calls. Frayed webbing fails inspection regardless of actual strength.

How do I know if my cargo has a high center of gravity problem?

If more than 60% of cargo weight sits above deck level, you’ve got an issue. Use load bars and dunnage bags to stabilize tall items. Test stability in the yard by making sharp turns at 10 mph. If anything shifts, it’ll fail on the highway.

What’s the penalty for skipping the 50-mile recheck?

CHP treats it as negligence if cargo shifts and you can’t prove you inspected. Fines start at $500, but liability for accidents caused by shifted loads gets expensive fast. Document every inspection with photos that include timestamps and location data.

Do I need special permits for oversize loads with proper securement?

Securement and permits are separate issues. You can have perfect tie-downs and still need CalTrans permits for width, height, or weight. Check both before you move.

Are there exceptions for short-distance hauls under 50 miles?

Not for securement requirements. Distance doesn’t matter—regulations apply the moment you enter a public road. We’ve seen violations written for trucks moving equipment 200 feet from one job site to another across a highway.

How often should I replace chains and straps?

Chains last longer than straps, but both need regular inspection. Replace straps annually if used frequently, sooner if you spot UV damage or fraying. Chains should be inspected every 25 uses and replaced when you see elongation, cracks, or worn links. Don’t wait for failure.

Load securement isn’t complicated, but it requires attention to details that don’t seem important until an inspector points them out. The difference between a smooth haul and a $3,000 violation usually comes down to checking one thing you assumed was fine.

Stay ahead of regulations, document everything, and when in doubt, add an extra chain. It’s cheaper than the alternative.
