I’ve watched too many people turn a simple loading job into a disaster. A scissor lift tips sideways. Ramps buckle. Someone nearly loses a foot. All because they skipped the basics or rushed through what should be a methodical process.

Loading a scissor lift onto a trailer isn’t rocket science, but it does demand respect. These machines weigh anywhere from 2,000 to 12,000 pounds depending on the model. Get it wrong, and you’re looking at damaged equipment, injuries, or worse. Get it right, and you’ll move your lift safely every single time.

Here’s what actually works.

Before You Even Touch the Lift

Most accidents happen before the lift ever moves. You need to think through what could go wrong before it does.

Check Your Trailer’s Weight Capacity

This seems obvious until you meet someone who didn’t do it. Your scissor lift’s weight needs to match your trailer’s rated capacity, with room to spare. A 4,000-pound lift on a 5,000-pound trailer? You’re cutting it too close. Factor in the weight of ramps, chains, and anything else you’re hauling.

Find the weight plate on your scissor lift. It’s usually on the base or near the controls. If it’s worn off or missing, look up your model’s specs online. Don’t guess.

Walk the Site

Look at where you’re loading. Is the ground level? Soft spots, gravel, or mud can shift under weight. You want solid, flat ground under both the trailer and lift.

Clear the area. Move tools, debris, cords, anything that could trip someone or get caught under wheels. Give yourself at least 10 feet of clear space around the entire operation.

Personal Protective Equipment Isn’t Optional

Steel-toed boots, hard hat, safety glasses, work gloves. You probably already know this, but I’m saying it anyway because I’ve seen guys skip it “just this once.” That’s when things go sideways.

Heavy gloves matter especially when you’re handling chains or straps. Pinched fingers between a chain link and a tie-down point hurts exactly as much as you’d imagine.

SCISSOR LIFT LOADING: THE NUMBERS YOU NEED TO KNOW

What You’re Measuring	The Reality	Why It Matters
Average Scissor Lift Weight	2,000 – 12,500 lbs	Your trailer capacity must exceed this by at least 20%
Loading Accidents	26% of all lift incidents	Most happen during transport and are completely preventable
Safe Ramp Angle	Under 15 degrees	Steeper angles risk tipping or losing control during climb
Minimum Tie-Down Points	4 (better with 6-8)	Each point should handle at least 50% of total lift weight
Check Your Load	Every 30-50 miles	Straps loosen, loads shift – regular checks catch problems early
Proper Loading Time	30-45 minutes	Rushing this process causes most loading errors and accidents
Strap Tension Loss	Up to 30% in first mile	Always stop and re-tighten after your first mile of travel

Inspect Your Trailer Like Your Life Depends On It

Because it might.

Brakes, Lights, Tires

Test the trailer brakes before you load anything. Hook it up, apply the brakes, try to move it. Worn brakes with a heavy load are a recipe for disaster on any downhill stretch.

Walk around and check every light. Turn signals, brake lights, running lights. Getting pulled over is annoying. Rear-ending someone because they couldn’t see your brake lights is catastrophic.

Look at tire tread and pressure. Bald tires or low pressure under a heavy load can cause blowouts. Check the spare too while you’re at it.

Ramps and Deck Surface

Your ramps need to handle the weight. Aluminum ramps rated for 1,500 pounds won’t cut it for a 5,000-pound lift. Use ramps rated for at least 1.5 times your lift’s weight.

Check for cracks, bends, or weak spots in the ramps. Test the connection points where ramps attach to the trailer. Wiggle them. If anything feels loose, don’t use it.

The trailer deck itself should be clean and dry. Oil, mud, or ice turns the deck into a skating rink.

The Actual Loading Process

You’ve done the prep work. Now comes the part where most people get nervous. Don’t be. Just take it slow.

Position the Trailer

Back your trailer as close to the scissor lift as practical. The shorter the distance you need to move the lift, the less can go wrong.

Make sure the trailer is level. If you’re on uneven ground, use blocks or wheel chocks to level it out. A tilted trailer makes the lift want to roll sideways.

Set the parking brake. Chock the trailer wheels. Use blocks in front and behind at least one wheel on each side.

Prepare the Scissor Lift

Lower the platform all the way down. The lower the center of gravity, the more stable the lift during loading.

If your lift has outriggers or stabilizers, retract them completely. Check that the basket is empty and nothing’s hanging off the sides.

Turn off the lift and remove the key. You don’t want anyone accidentally hitting controls mid-load.

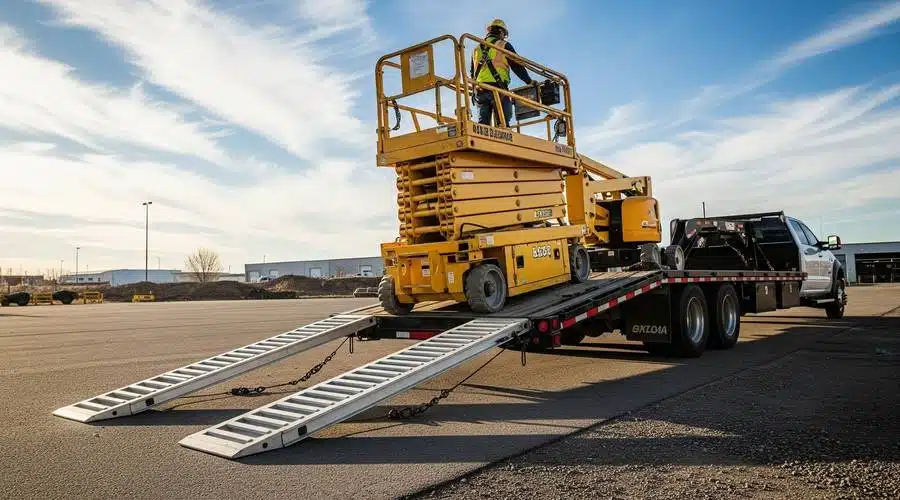

Set Up Your Ramps

These vehicles come in various sizes and configurations, each with their own unique features that make them suitable for different jobs at hand. Match your ramp angle to your lift type. A steeper angle works for lighter units, but heavier lifts need a gentler slope to prevent tipping or getting stuck.

The general rule: keep ramp angles under 15 degrees if possible. Much steeper and you risk the lift tipping backward or struggling to climb.

Secure the ramps to the trailer. Many have hooks or pins that lock them in place. Don’t skip this step. A ramp shifting mid-climb can flip your lift.

Using a Winch or Manual Power

For lighter scissor lifts under 3,000 pounds, you might roll them up manually in neutral. Heavier units need mechanical help.

Subsequently, affix the winch or crane to your lift. If you decide on a winch, guarantee that it is long enough to both reach your lift and trailer. Connect the winch cable to a solid attachment point on the lift’s frame, not to the platform or controls.

Pull slowly. Stop every few feet to check alignment. The lift should stay centered on the ramps as it climbs.

If you’re driving the lift up under its own power (some electric models can do this), go extremely slow. Keep it straight. One wheel off the ramp and you’re in trouble.

Center the Lift on the Trailer

Once the lift is on the deck, position it dead center. Equal weight distribution front-to-back and side-to-side keeps the trailer balanced during transport.

Most trailers have tie-down points or tracks. Position your lift so these points align with the lift’s frame. You’ll need at least four secure points, one at each corner of the lift’s base.

Securing the Scissor Lift

This is where people get lazy. They’ll throw a couple straps on and call it good. Don’t be that person.

Use Proper Tie-Downs

Chains or heavy-duty ratchet straps rated for your lift’s weight. I prefer chains for lifts over 5,000 pounds because they don’t stretch or wear out as easily.

You need minimum four tie-down points. Better to use six or eight for heavier units. Attach from the lift’s frame to the trailer’s D-rings or anchor points.

Angle the chains or straps down at roughly 45 degrees. This prevents both forward/backward movement and side-to-side shifting.

Tighten everything, then tighten it again. Walk away for five minutes, come back, and check it one more time. Straps loosen as weight settles.

Chock the Wheels

Even with straps, chock all four wheels. Place blocks tight against the tires in the direction of travel. If you brake hard, those blocks are your backup.

Double-check that the lift’s parking brake is engaged if it has one.

Transporting Your Scissor Lift Safely

You’ve loaded and secured properly. The actual towing part still requires attention.

Drive Differently

You’re pulling thousands of extra pounds. Your stopping distance just doubled. Your turning radius is wider. Acceleration is slower.

Give yourself twice the normal following distance. Start braking earlier than you normally would. Take turns slower.

Watch your mirrors constantly. Check the trailer and load every time you stop. A loose strap at mile 5 is easier to fix than a lost load at mile 50.

Know Your Route

Avoid sharp turns if possible. Scout out any tight corners or narrow gates ahead of time. Low bridges and overpasses matter more now if your lift is tall.

Plan for regular stops every 30-50 miles to inspect your load and trailer. Check strap tension, look for shifting, verify tire pressure.

Common Mistakes That’ll Cost You

Using Damaged Equipment

Frayed straps, bent ramps, worn winch cables. If it looks questionable, it is. Replace it. A $50 strap is cheaper than a $15,000 lift repair.

Rushing the Process

Loading a scissor lift safely takes 30-45 minutes with a good crew. Trying to do it in 10 minutes is how accidents happen. Plan your time accordingly.

Ignoring Weight Distribution

A tail-heavy trailer fishtails. A front-heavy trailer puts excessive weight on your tow vehicle’s rear axle. Center the load properly or you’ll feel it on the highway.

Skipping the Final Check

Right before you drive off, walk around one last time. Tug on every strap. Look at every connection point. Verify the trailer lights work. This 60-second check catches problems while you’re still in the parking lot.

When to Call in Professional Heavy Haul Transport Service

Sometimes the smart move is admitting a job is beyond your equipment or experience. If you’re dealing with a 10,000+ pound lift, crossing state lines, or navigating difficult terrain, professional Heavy Haul transport service providers have the right trailers, insurance, and expertise.

They deal with oversized and overweight loads daily. The cost of professional transport often beats the risk of doing it wrong yourself.

The Reality of Scissor Lift Transportation

Loading a scissor lift onto a trailer is straightforward when you respect the process. Do your safety checks. Use proper equipment. Take your time. Secure everything twice.

Most people overthink the complexity and underthink the details. It’s not complicated, but every step matters. Skip the PPE, use worn straps, rush the securing process, and you’re gambling with expensive equipment and human safety.

Treat each load like it’s your first. Stay methodical. Stay safe. Your lift will get where it needs to go in one piece, and so will you.

Frequently Asked Questions

Can I load a scissor lift by myself?

Technically yes for smaller lifts under 3,000 pounds, but it’s not smart. You need at least one other person to guide, spot for safety, and help secure the load properly. Heavier lifts absolutely require a crew of 2-3 people.

What size trailer do I need for a scissor lift?

Your trailer’s weight capacity should exceed your lift’s weight by at least 20%. A 5,000-pound lift needs a trailer rated for 6,000+ pounds minimum. Also check that the deck width fits your lift with a few inches clearance on each side.

How tight should I make the tie-down straps?

Tight enough that the lift doesn’t budge when you try to rock it, but not so tight you’re bending the frame. Tighten them, wait 5 minutes for the weight to settle, then tighten again. Check and re-tighten after your first mile of driving.

Do I need special insurance to transport a scissor lift?

Your regular auto insurance might not cover cargo damage or accidents while towing heavy equipment. Check your policy or call your agent. Commercial policies or specialized equipment insurance usually provide better coverage for transporting lifts.

What’s the biggest mistake people make when loading a scissor lift?

Rushing. People try to load in 10 minutes what should take 30-45. They skip the safety checks, use questionable straps, don’t center the load properly, and then wonder why something goes wrong on the highway.
