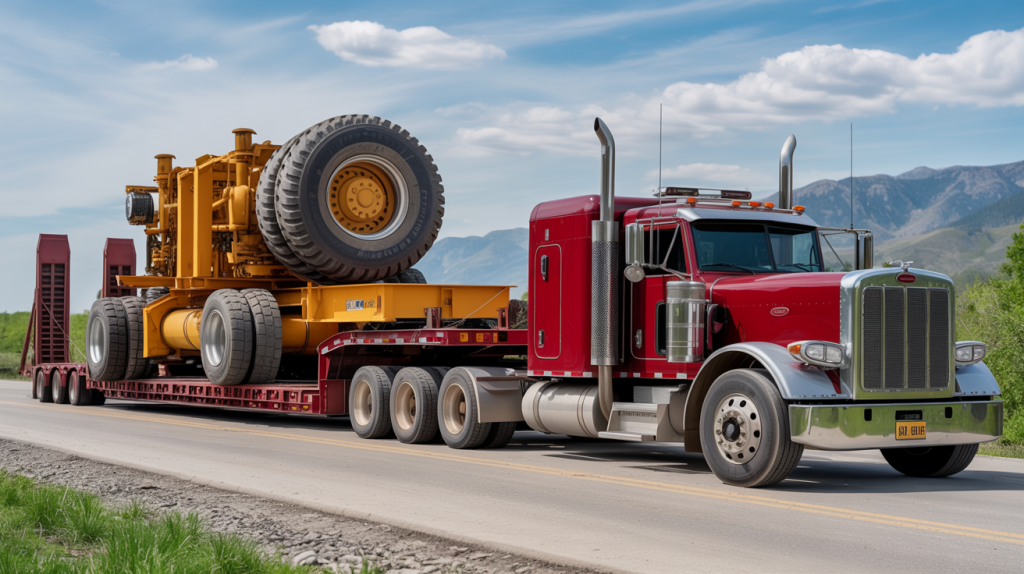

When to Use an RGN Trailer for Oversized Machinery

An RGN trailer is used when oversized machinery needs a safer, lower, and more controlled way to load onto the trailer. RGN means removable gooseneck. The front section of the trailer can detach, allowing equipment to drive onto the deck from the front instead of climbing steep rear ramps.

That design makes RGN trailers especially useful for heavy machines that can move under their own power but still need careful loading geometry. Excavators, bulldozers, wheel loaders, graders, and other oversized equipment often benefit from an RGN because the loading path becomes more direct and controlled.

RGN trailers are useful when loading access matters

Some trailer decisions are mostly about height. Others are mostly about weight. With RGN trailers, loading access is often the biggest reason for choosing them.

When the front gooseneck detaches, the trailer creates a ground-level approach to the deck. This helps equipment drive on with less ramp stress, better operator control, and a lower breakover angle. For large machinery, that can make loading feel safer and smoother than using a higher trailer with steeper ramps.

When customers compare heavy haul trailer types and when each one is used, the RGN often stands out because it solves the loading problem before the road move begins.

RGN trailers help protect equipment during loading

Oversized machinery can be damaged before transport even starts if the loading method is too aggressive. A steep ramp can cause undercarriage contact, tire spin, frame stress, attachment clearance issues, or poor weight transfer as the machine climbs onto the trailer.

An RGN reduces many of those risks by giving the machine a more controlled path onto the deck.

This matters for:

• excavators with tracks and attachments
• bulldozers with blades or rippers
• wheel loaders with large buckets
• graders with long frames
• compact machines with low clearance
• non-standard machinery with awkward loading geometry

The goal is not just to load the machine. The goal is to load it without stressing the equipment before the trip begins.

RGN trailers work well for self-propelled machinery

RGNs are especially helpful when the machine can drive, steer, and brake under its own power. Since the trailer opens from the front, the equipment can usually move directly onto the deck in a controlled line.

That makes RGNs common for construction and industrial machinery that needs drive-on loading but should not be forced up steep ramps. If the machine does not run or cannot move safely, the plan may need a winch, crane, forklift, or another loading method instead.

A good RGN move starts by confirming the machine condition, not just the trailer availability.

RGN trailers can reduce total transport height

An RGN trailer often has a low deck, which helps reduce the loaded height of tall equipment. This makes it useful for machinery that may become overheight on a standard flatbed or step deck.

Height matters because bridges, signs, utility lines, tree cover, and industrial entrances can all restrict the route. A lower deck gives the transport team more flexibility, although the route still has to be checked carefully.

This is where RGNs share some purpose with lowboy trailers. Both can help reduce height, but lowboy trailers for heavy equipment transport are often selected primarily for low transport height and stability, while RGNs add the benefit of easier front loading.

RGN trailers are useful when loading sites are difficult

Pickup and delivery sites are not always clean, flat, or spacious. A machine may be sitting on a construction site, industrial yard, farm, mining location, or temporary access road. In those places, a trailer that loads more easily can reduce delay and risk.

An RGN can help when:

• rear ramp loading would be too steep
• the site has limited approach space
• the machine needs a lower loading path
• equipment must be loaded with more operator control
• attachment clearance makes steep loading difficult
• unloading at the destination also needs a safer approach

The trailer still needs enough room to detach and align properly, so site access should always be checked before choosing the setup.

RGN trailers are not only for the heaviest machines

Many people associate RGN trailers with very heavy equipment, but the trailer is not chosen only because of weight. It may also be chosen because of loading safety, ground clearance, transport height, site conditions, or cargo value.

A moderately heavy machine may still need an RGN if it is difficult to load safely on another trailer. At the same time, an extremely heavy load may need a multi-axle or modular trailer if weight distribution is the dominant challenge.

The best trailer choice comes from the load’s real problem, not from the assumption that “bigger equipment always needs the same trailer.”

RGN trailer selection still depends on weight and axle planning

An RGN can simplify loading, but it still must match the machine’s weight and axle requirements. If the machine is too heavy for the trailer setup, or if weight is placed poorly on the deck, the move can create permit, handling, or infrastructure issues.

Before using an RGN, the carrier should confirm:

• operating or shipping weight
• center of gravity
• deck capacity
• axle configuration
• loaded height
• width and length
• route restrictions
• securement points

A trailer that loads well still has to travel legally and safely.

RGN trailers can improve unloading at the destination

The same feature that helps at pickup can help at delivery. If the destination site has limited equipment support, an RGN can allow machinery to drive off in a more controlled way. This can reduce reliance on cranes or steep ramps when the machine is self-propelled and site conditions are suitable.

However, the delivery site still needs enough space, stable ground, and a clear path for the machine after it leaves the deck. If the trailer cannot detach safely or the ground is too soft, the unloading plan may need adjustment.

A good RGN move considers both pickup and delivery before the trailer is assigned.

When an RGN may not be the best choice

An RGN is powerful and versatile, but it is not always the right trailer. Another trailer may be better if the cargo is extremely long, unusually dense, simple enough for a flatbed, or better suited for crane loading.

An RGN may not be ideal when:

• the load is long enough to need an extendable trailer
• the cargo is too dense for the axle setup
• the machine does not drive and needs crane loading anyway
• the site does not allow the gooseneck to detach properly
• the load is low and simple enough for a less complex trailer
• the route requires a different deck or axle configuration

Trailer choice should solve the biggest constraint without adding unnecessary complexity.

What customers should share before requesting an RGN move

Customers can help the carrier decide whether an RGN is the right trailer by sharing clear machine and site details.

Helpful information includes:

• machine make and model
• operating weight
• travel height, width, and length
• attachment details
• whether the machine starts, steers, drives, and brakes
• pickup surface and access space
• delivery surface and unloading area
• overhead hazards
• deadline or delivery window

These details help the carrier confirm whether an RGN will make the move safer and more efficient.

Conclusion

An RGN trailer is used for oversized machinery when front-loading access, lower loading angles, controlled equipment movement, and reduced transport height matter. It is especially useful for self-propelled machines that need a safer path onto and off the trailer.

The main value of an RGN is control. It helps the machine load more smoothly, travel at a practical height, and unload with less stress when the site conditions allow it. When the machinery, route, weight, and site access all match the trailer’s strengths, an RGN becomes one of the most useful heavy haul trailer options.
